Stainless Steel Woven Wire Mesh with 6Mesh
Produktdetails
| Webenstil | Leinwandbindung, Twill-Webart, schlicht oder Twill-Webart oder gekräuselt, Leinwandbindung/Twill-Web | Anwendung | Gewebter Drahtnetz, Filter, Bildschirm, Schutznetz, dekoratives Drahtnetz |
|---|---|---|---|
| Material | Edelstahldraht, 316.304, Kupfer, blanker Stahl verzinkt | Verwendung | Chemische Industrie,Öl,Filtration,Filternetze,Luft |
| Länge | 30m/roll | Breite | 1 m, normalerweise 1 m, 1,22 m oder auf Anfrage kundenspezifisch, 0,914 m |
| Besonderheit | Korrosionsbeständigkeit, Korrosionsbeständigkeit, Alkalibeständigkeit, Alkalibeständigkeit usw.,Flex | Probe | Verfügbar, je nach Größe, erlaubt |
| Hervorheben | stainless steel woven wire mesh,6mesh stainless steel mesh,ss woven wire mesh with warranty |
||
Produkt-Beschreibung

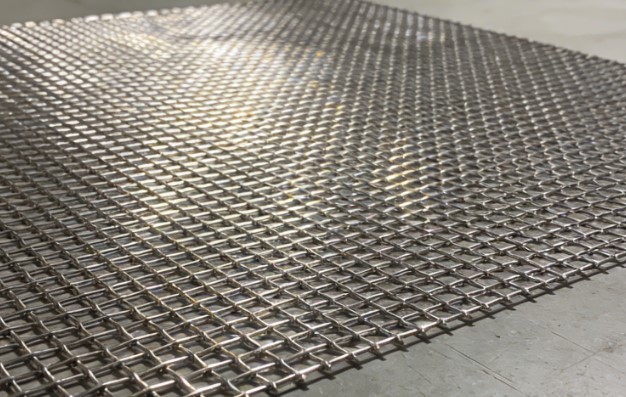

Stainless Steel Woven Wire Mesh with 6Mesh
6 Mesh Stainless Steel Wire Mesh is a precision-engineered industrial solution featuring 6 uniform openings per linear inch, providing an ideal balance between structural stability and material permeability. Manufactured from high-quality stainless steel grades including 201, 304, 304L, 316, and 316L.
| Specification | Details |
|---|---|
| Mesh Count | 6 openings per linear inch |
| Wire Diameter | 1.0mm standard |
| Aperture Size | 3.2mm |
| Open Area | 58% |
| Available Grades | 201, 304, 304L, 316, 316L |
Core Features
- Balanced Durability & Permeability: 1.0mm wire gauge provides reliable load-bearing capacity while maintaining optimal open area for filtering and protective applications
- Superior Corrosion Resistance: Stainless steel construction resists rust, oxidation, and mild chemical corrosion; 316/316L grades recommended for coastal or acidic conditions
- Flexible Weaving Options: Available in plain weave (general screening), twilled weave (higher strength), and Dutch weave (finer filtration)
- Customizable Dimensions: Standard rolls (30m length, max 2000mm width) and cut-to-size sheets; custom shapes and edge treatments available
Key Applications
- Industrial Processing: Medium-particle sieving, mineral classification, machinery intake protection
- Construction & Infrastructure: Lightweight concrete reinforcement, balcony safety railings, facade decorative meshes
- Agriculture & Husbandry: Poultry fencing, seed grading, crop storage ventilation screens
- Food & Beverage: Pre-filtration of fruits, vegetables, and grains in processing lines
- Environmental Engineering: Wastewater preliminary filtration and dust collection system screens
