120×110 Mesh Plain Weave 201 302 SS Woven Wire Mesh

  • 120×110 Mesh Plain Weave 201 302 SS Woven Wire Mesh
  • 120×110 Mesh Plain Weave 201 302 SS Woven Wire Mesh
  • 120×110 Mesh Plain Weave 201 302 SS Woven Wire Mesh
Herkunftsort Anping von China
Markenname QIANPU
Zertifizierung ISO
Min Bestellmenge 5 Rollen
Preis negotiable
Verpackung Informationen Innerhalb mit eines Papierrohrs äußer mit Plastikfilm oder wasserdichtem Papier, dann im Holzetui od
Lieferzeit EINE WOCHE
Zahlungsbedingungen T/T, Western Union, L/C
Produktdetails
Produktname SS Gewebtes Drahtnetz Edelstahl 200, 300, 400 Reihe
Oberfläche Helles Silber Blendenform Rechteckige Blende
Mesh zählt 120*110 usw Drahtdurchmesser 0,08 mm usw
Rollenbreite Maßgeschneidert Standardlänge Maßgeschneidert
Properity Antirost Anwendung Filtration
Hervorheben

201 stainless steel woven wire mesh

,

302 stainless steel wire mesh

,

120x110 plain weave wire mesh
Hinterlass eine Nachricht
Produkt-Beschreibung

Rectangle Aperture Wire Mesh Introductioin

The Plain Wire Cloth Weave is the most common wire cloth used and it is one of the simplest wire cloths. The plain wire cloths are not crimped before weaving, and each warp wire passes over / under the wires running through the cloth at 90 degree angles.



Warp and weft wire diameters are generally the same, sizes of aperture are not the same . Used for the majority of commercial applications and for filtration where a high flow rate is required.



Standard Specifications:

Mesh Counts

Warp×weft

 Wire Diameter(mm)

Apertures(mm)

Warp×weft
120×110 0.08 0.13×0.17
110×100 0.09 0.14×0.16
100×90 0.10 0.15×0.18
90×80 0.10 0.18×0.15
80×70 0.12 0.20×0.24
70×60 0.15 0.21×0.27
60×50 0.18 0.24×0.33
30×26 0.34 0.51×0.64
… … …



Other specifications according to your requirements.


Materials:



200 series : 201, 202, 205
300 series : 301, 302, 304, 304L, 309, 309S, 310, 310S, 316, 316L, 321
400 series : 410, 420, 430

" " means most common stainless steel grade.



Copper alloy, aluminum alloy, nickel alloy, carbon steel... are available.


Features:

High abrasion resistance – longer life;
Resistance to chemical and atmospheric corrosion;
Mechanical strength unaffected by high heat;
Easily cleaned and ideal for food industry, etc.


Applications:
Used in mining, petroleum, chemical, food, medicine, machinery manufacturing another industries.
Used in conditions of acid, alkali environment for screening and filter, oil industry as mud nets,
chemical fiber industry, as a sieve mesh, insect screen for window/doors, plating industry as pickling nets. Our factory can design and product various types of products according to uyour needs.



Simple Drawing of Rectangle Hole

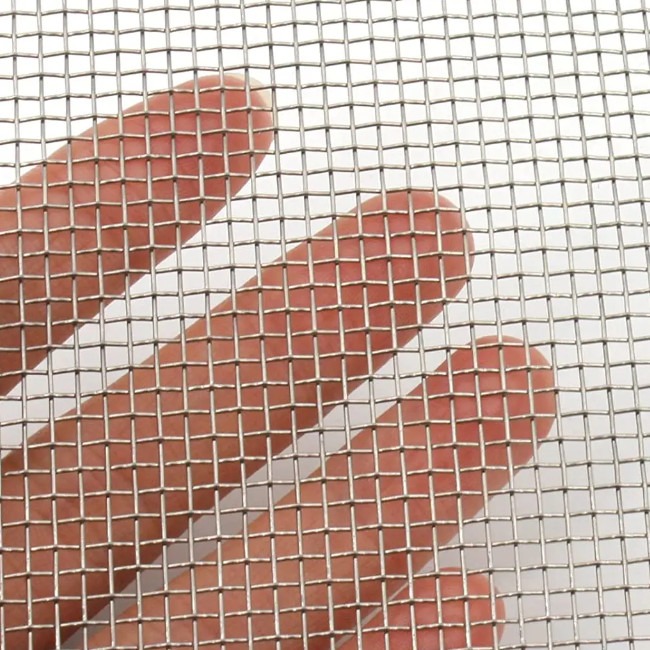

120×110 Mesh Plain Weave 201 302 SS Woven Wire Mesh 0

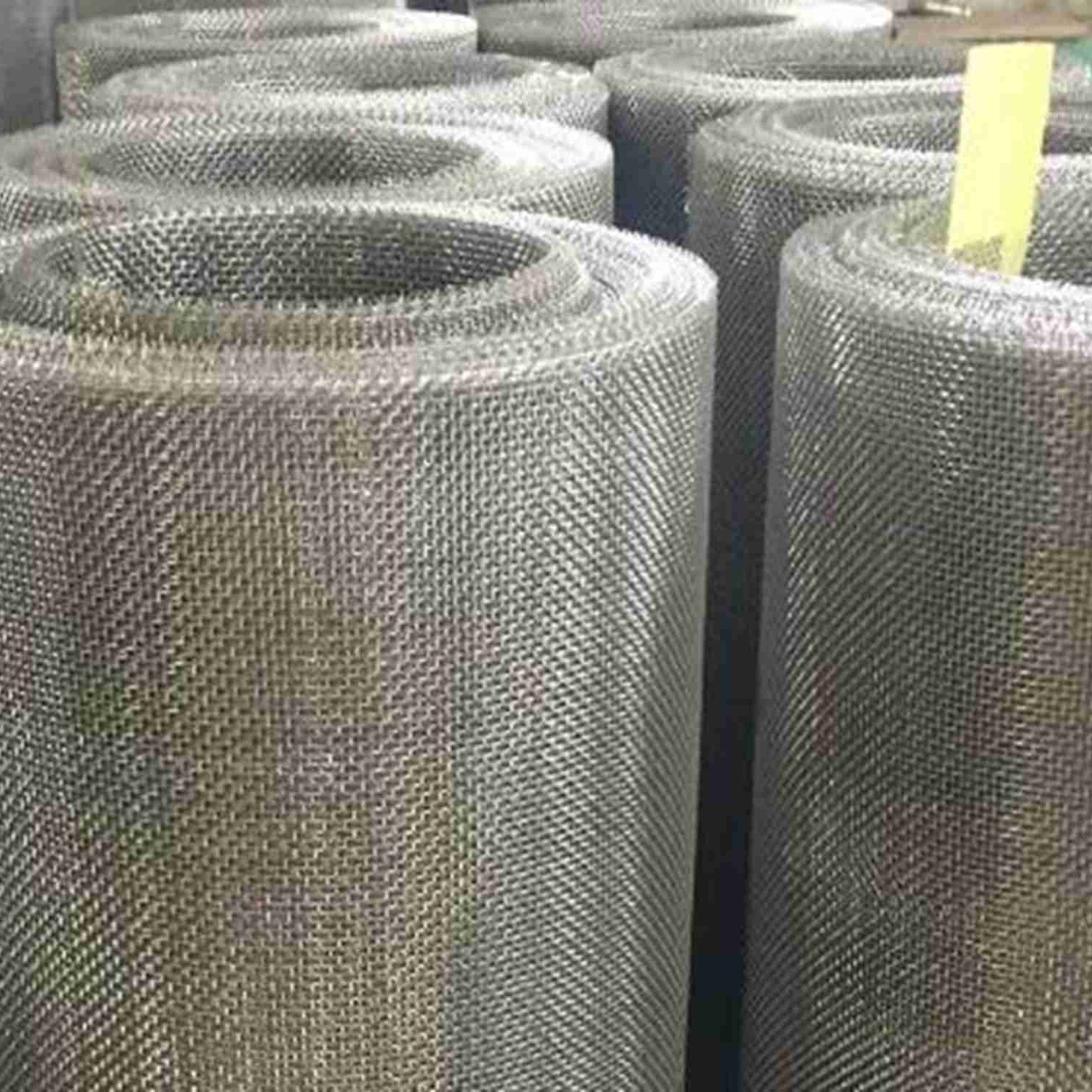

Packing:

120×110 Mesh Plain Weave 201 302 SS Woven Wire Mesh 1
